arb Intensity Driving Lights




Arb intensity v2 led driving lights

Engineered in Australia and manufactured in the United States, the ARB Intensity LED light range has been specifically designed to meet the demanding requirements of 4WDers throughout the world. From producing white light that is the closest possible imitation of sunlight, to a virtually indestructible polycarbonate lens, these lights are the premium choice.

Built with the latest LED technology, the Intensity V2 driving lights feature higher wattage ‘OSRAM GIANTS’ LEDs to deliver a light that is controlled and focused for the naked eye to see. Unlike high intensity discharge (HID) lights, the LED range does not require time to warm up, and performs brilliantly on corrugated roads by producing a broad field of light that helps diffuse vibration.

Submersible to 3m, compliant for radio interference suppression, the ARB Intensity V2 LED lights have been vibration tested to military specifications to ensure they can withstand extended periods of heavy corrugations and extreme conditions to keep the road ahead brightly lit.





features

  • AR32V2 - Available in spot and flood beams, and featuring 32 LEDs with 50,000+ hour lifespan

  • AR21V2 - Featuring 21 LEDs, thew AR21 is available in Spot and Flood Beams

  • GORE-TEX - A GORE-TEX breather acts as a vent to protect against condensation and contaminants

  • Durable Body - High Pressure cast aluminium body for superior strength

  • Mounting Bracket - Multi-Position Stainless Steel mounting bracket features a large footprint, versatile installation options, and a TIG weld for added strength

  • Interferance and Vibration Resistant - Protected against radio frequency (RFi) and Electromagnetic (EMC) Interference, the lights are also MIL810-STDG vibration certified and RoHS Compliant



ARB Intensity Specifications

Intensity Specs.png



ARB Intensity Specifications

*Note: Scroll through for spot and flood specifications




ARB AR40 INTENSITY LED LIGHT BAR






Engineered in Australia and manufactured in the United States, using the same patented lens/reflector technology as our existing Intensity LED driving lights, the new ARB Intensity LED light bar features 40 individual LEDs (two rows of 20) encased in a virtually indestructible polycarbonate lens and a powdercoated, extruded aluminium body with pressure die cast end caps.

Designed to integrate with the top tube of the bull bar, the AR40’s extruded alloy housing wraps around the tube, providing a low profile that doesn’t obstruct the driver’s view (as per Australian Design Rule ADR42/04 Section 12) of the road. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.

Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to operate at optimum efficiency even when the vehicle is stationary.

Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements







sPECIFICATIONS



SPECS

Input

Current Draw

Lux at 10m

Operating Temperature

Weight

Power

Output

Spread

Colour Temperature

UV Emissions

AR40 COMBO BEAM

9-36V DC

8.0A at 14.4V

2889

-40°C to 63°C (-40°F to 145°F)

3.98kg

115W

9200 raw lumens

20° flood / 10° spot

5700K

0

AR40 SPOT BEAM

9-36V DC

8.0A at 14.4V

4780

-40°C to 63°C (-40°F to 145°F)

3.98kg

115W

9200 raw lumens

10° full width

5700K

0



PEDESTAL MOUNTING KIT

BULLBAR MOUNTING KITS

INTENSITY LIGHT BAR COVERS

For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners.


For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel.


Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber, blue, red and solid black.

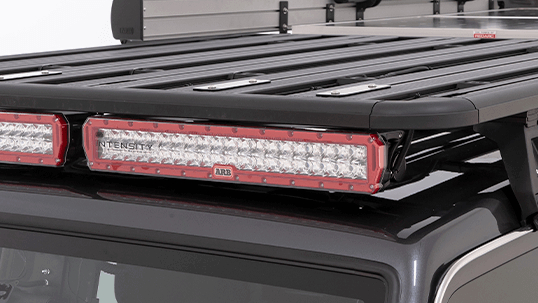

RHINO-RACK MOUNTING KIT

The AR40 Intensity roof rack mount bracket was introduced due to popular demand and utilises the AR40 hardware for the perfect fit. This mounting system provides a versatile option to suit the Rhino-Rack Pioneer® platform, tray, tradie & universal range.

The AR40 Rhino-Rack mount features 5mm powder coated steel brackets whilst being tilt-adjustable, lateral and longitudinal adjustable (not vertical adjustable).

*Shown with 2 kits fitted to suit two AR40 light bars.
