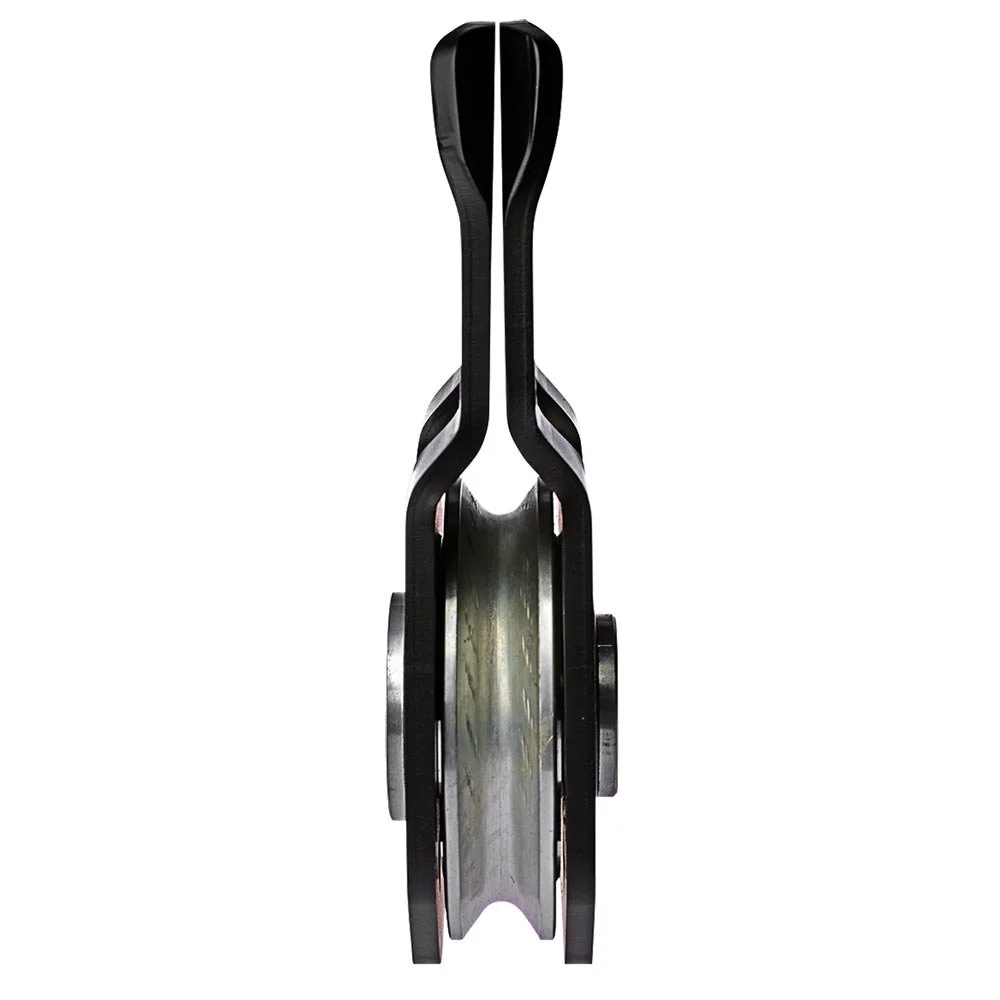

Bushranger Snatch Block
Bushranger Snatch Block
The Bushranger® Snatch Block is engineered, and field-tested in Australia by 4WD enthusiasts with many years of experience. Independent testing has also been carried out at a NATA accredited laboratory to verify the design. The Bushranger® Snatch Block has a working load limit of 11,000kg with a minimum breaking strain of 18,000kg, giving you the peace of mind that no matter the situation, it won’t let you down.
Providing multiple options in self-recovery situations, the Bushranger® Snatch Block is a 4×4 essential for single-vehicle recoveries using a winch. Increasing the winch’s pulling power, a snatch block works to retrieve loads that are double a winch’s capacity by halving the load on the winch, also aids winching from different angles when straight isn’t an option.
Designed with variable applications in mind, the snatch block incorporates a tapered pulley design that allows for multiple sized ropes to be used in the one product. Rounded edges assist with guiding the rope in and out of the snatch block but also prevents damage to both synthetic and wire ropes. Upswept tabs on the side plates offer additional rigidity but also allow for smooth operation, even when wearing gloves.
The Bushranger® Snatch Block is engineered and field-tested in Australia by 4WD enthusiasts with many years of experience. Independent testing has also been carried out at a NATA accredited laboratory to verify the design. The Bushranger® Snatch Block has a working load limit of 11,000kg with a minimum breaking strain of 18,000kg, giving you the peace of mind that no matter the situation it won’t let you down.
Providing multiple options in self-recovery situations, the Bushranger® Snatch Block is a 4×4 essential for single-vehicle recoveries using a winch. Increasing the winch’s pulling power, a snatch block works to retrieve loads that are double a winch’s capacity by halving the load on the winch, also aids winching from different angles when straight isn’t an option.
Designed with variable applications in mind, the snatch block incorporates a tapered pulley design that allows for multiple sized ropes to be used in the one product. Rounded edges assist with guiding the rope in and out of the snatch block but also prevents damage to both synthetic and wire ropes. Upswept tabs on the side plates offer additional rigidity but also allow for easy operation, even when wearing gloves.
Specifications
Part No: RBS11
Working load: 11,000kg
Minimum breaking strength: 18,000kg
Dimensions: 197mm x 105mm x 50mm
Material: UV Stable Matt Black Powder coated 6mm steel side plates
Bearing: Precision machined steel with grease nipple axle
Rope type: Suitable for synthetic or wire rope up to 12mm diameter
Weight: 2.5kg
Warranty: 5 Years
